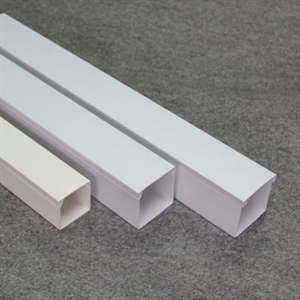

1.Description ofPVC Wire Ducts
| Material | High DensityPVC |
| Size | 16x16mm,25x16mm...100x50mm |
| Thickness | 0.6-2.0mm |
| Color | White/White Blue |
| Length | 2.9m or customized |
| Performance | With sticker or without sticker |
| Standard | EN/13245-2/2005 |
| Business | Manufacturer or OEM |
2. MainFeatures ofPVC Wire Ducts
Impact Strength | Resistant to compression and impact, suitable to be buried in concrete |
Non-Conductive | Good insulation, able to resist 25KV voltage, assuring a safe system |
Fire-Resistance | With self-extinguishing function |
Anti-Corrosion | Resistant to acids, bases and salts, lower maintenance cost and longeruseful life. |
| Smooth Surface | Small friction and high flow capacity to ensure the cables go through smoothly |
| Easy Installation | Light weight, easy to cut, transport, bent and handle; easy connecting and threading joining without leakage |
3.Specification ofPVC Wire Ducts
Following size is our current size for the Plastic Cable Channels, and custom sizesare accepted.
| Siz(MM) | Thickness(MM) | Package(PCS/Bundle) |
| 16X16 | 0.63/0.80/1.00 | 40 |
| 20X10 | 0.45/0.55/0.70 | 50 |
| 24X14 | 0.65/0.75 | 50 |
| 25X16 | 0.63/0.72/1.00 | 25 |
| 25X25 | 0.75/0.95 | 20 |
| 40X16 | 0.60/0.80/1.00 | 20 |
40X20 | 0.75/0.90 | 20 |
| 40X25 | 0.68/0.76/1.00/1.20 | 10 |
| 40X40 | 1.38 | 10 |
| 50X25 | 1.00 | 10 |
| 50X50 | 1.10/1.25 | 4 |
| 59X22 | 0.85/1.10 | 10 |
| 60X40 | 1.20/1.40 | 6 |
| 75X50 | 1.25/1.50 | 2 |
| 75X75 | 1.30/1.50 | 2 |
| 100X27 | 0.90/1.20 | 5 |
| 100X40 | 1.35/1.50 | 2 |
| 100X60 | 1.65/1.90 | 2 |
| 100X100 | 1.60/2.00 | 1 |
